Характеристики

Condition: New

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Marketing Type: Hot Product 2020

Warranty of core components: 1 Year

Core Components: Bearing, Gearbox, Motor, Gear

Voltage: customized

Power: 15-20kw

Dimension(L*W*H): 10*1*1.7m

Weight: 1.2 ton

Warranty: one year

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Restaurant, Food Shop, Food & Beverage Shops

Showroom Location: None

After-sales Service Provided: Engineers available to service machinery overseas

Application: Make Biodegradable Drinking Straws

Raw material: Sugar Cane Resin

Screw Grade: 38CrMoAlA material 0.7mm nitrogen treatment

Straw diameter: 5-12mm

Production Capacity: 20-40kg/h

After Warranty Service: Video technical support, Online support, Spare parts

Local ServiceÂ Location: None

Сертификация: CE Certificate

Основная информация

Сертификация: CE Certificate

Оплата и доставка Условия

Packaging Details: high quality 35mm thickness non-fumigation export wooden box packaging; One set machine packed into one wooden box; Machine is fixed with long screws protect from damage.

Supply Ability: 15 Set/Sets per Month Biodegradable Sugar Cane Drinking Straw Making Machine

Характер продукции

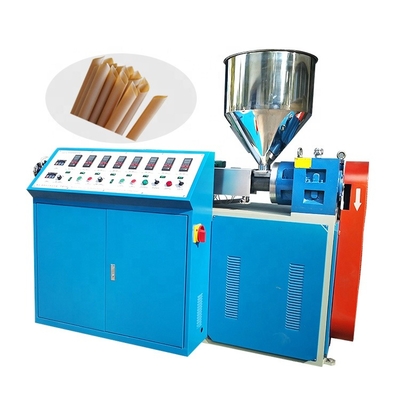

Can work continuously plant sugar cane drinking straw extrusion machine

Product Description

Type	Sugar Cane Drinking Straw Making Machine
Raw Material	Sugar cane fiber Resin
Main Screw	Dia. 50mm, Length/Dia. 28/30:1
Straw Color	Single Color
Production Capacity	20-40kg/h
Total Power	20-22kw
Extruder dimension	2.2m1m1.7m
Complete line dimension	10m1m1.7m
Weight	1000kg

Sugar cane drinking straws making machine use Sugar cane resin as raw materials, after melting, extrusion, shaping, cooling, pulling and rotating, cutting, then produce biodegradable sugar cane drinking straws.

Main Features
1)The gears and bearings(NSK, Japan) are precision ground and hardened to ensure smooth and quiet operations.
2)The screw and barrel for straw extrusion is manufactured from Aluminum Chromolybdenum alloy steel(38CrMoAlA material 0.2-0.7mm nitrogen treatment).
3)The die undergoes nitride hardening treatment for a long service time.
4)The water tank and the surface of cutting machine are made of fully 304 stainless steel.
5)The main extruder's screw designed to suit plastic material specified. Tube die head assembly manufactured in tool steel.
6)All of our machines are made strictly according to CE standard.
