Характеристики

Application: Sheet, Film, Plates

Plastic Processed: PET

Condition: New

Screw Design: Double-screw

Twin Screw Type: Co-rotating Parallel Twin-screw

Screw Material: 38CrMoALA

Screw diameter (mm): 75

Screw L/D Ratio: 33:1

Screw Speed (rpm): 38 rpm

Showroom Location: Egypt, Canada, Italy, Pakistan, India, Russia, Malaysia

Voltage: 380-415V

Dimension(L*W*H): 20*3*3m

Power (kW): 150

Weight: 5000kg

Warranty: 1.5 years

Key Selling Points: Multifunctional,Automatic, High productivity

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Restaurant, Home Use, Construction worksÂ , Food & Beverage Shops

Marketing Type: PET plastic packaging sheet machine

Video outgoing-inspection: Provided

Machinery Test Report: Provided

Warranty of core components: 1.5 years

Core Components: Bearing, Motor, Pump, Gear, PLC, Engine, Gearbox, Screw

Name: twin screw extruder for plastic sheet making

raw material: PET

output: 350kg/hour

Processing Type: Exturding Machine

producing speed: 3-6m/min

Usage: Producing PET plastic sheet

colour: according to customer

Inverter: ABB

products width: 1200mm

Final product thickness: 0.25-2mm

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, Canada, Italy, Pakistan, India, Russia, Malaysia, South Korea

Сертификация: CE

Основная информация

Сертификация: CE

Оплата и доставка Условия

Packaging Details: Film and plywood case packaging for China PE pipe Extrusion Line Bogda Machinery Supplier

Supply Ability: 200 Set/Sets per Year PVC foam board extrusion line

Характер продукции

Product Description

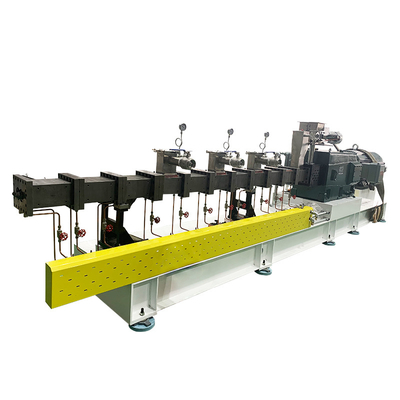

75 Parallel Twin-screw extruder for PET transparent sheet production line
1. High transparency, high brightness, no crystal points, good flatness
2. Adding food grade slip agent, complete sheet specifications, high productivity, high quality and low price
3. Environmentally friendly and non-toxic
4. It can process PET-G,GAG, flat sheet, slitting and laminating.

PET sheet product application

1. Vacuum forming: food packaging, toy boxes, stationery boxes, gift boxes and tools, hardware packaging
2. Antistatic use: electronic parts packaging, permanent conductive sheet, permanent antistatic sheet, permanent semi-conductive
sheet
3. Generalpurpose: blister, folding box, packaging, printing, card making, etc.

Classification of PET sheet extrusion production line:

1. Single screw production line for PET sheet: single screw extrusion production line for APET, PETG and CPET sheet is the most mature project with the most stable production at present. Generally, single extruder production line or twin-extruder production line is adopted and Bogda uses the latest technology to increase the general efficiency by 30%.

2. PET sheet single screw exhaust production line: this machine only needs to crystallize PET, and does not need to dry. Its advantages: low energy consumption, simple process, convenient equipment maintenance, and can ensure the blister 18CM deep cup.

3. The PET sheet twin-screw exhaust line (free from dry and crystallization) : Bogda launched PET sheet twin-screw exhaust line without drying and crystallization which has the advantages of low energy consumption, high efficiency.This machine is our continuous improvement upgraded products , and its central vacuum system has been upgraded. The
original roots - water ring pump group upgrades to roots - rotary vane pump, which can make the vacuum degree reach 10 pa, or less. Meanwhile by using PET special alloy steel thin-wall roller unit can increase the cooling efficiency, so as to increase output, improve product toughness and transparency. Our independently programmed operating system ensures that the device is user-friendly and easy to operate.

4. PET sheet planetary multi-screw exhaust production line (free from crystallization and drying) : the planetary screw extruder is adopted as the main machine to increase the space for materials and air, and with the vacuum pumping system newly developed by Bogda can meet the needs of customers with large output and high quality sheets.

Specification

capacity of our PET transparent sheet extrusion line

Type of extrusion line	single screw sheet PET extrusion line	single screw venting sheet PET extrusion line	twin screw venting PET sheet extrusion line	PET sheet planetary multi-screw exhaust extrusion line
Method of dealing material	Crystallization and drying	Free from crystallization and drying	Free from crystallization and drying	Free from crystallization and drying
Structure of Product	Single layer, double-layer or multi-layer PET sheet
Width of Product	600mm-1220mm
Thickness of Product	0.17mm-2mm
Output	200kg/h-1000kg/h

Packing & Delivery

Film and plywood case packaging for China PE pipe Extrusion Line Bogda Machinery Supplier

Company Profile

BOGDA Machinery Technology Co., Ltd is a leader of plastic machine and raw material, such as plastic profile/pipe/sheet extrusion equipment, waste PP/PE film/PET bottle washing recycling machine,recyclying production line, as well as plastic granulating line. Meanwhile, we are familiar with kinds of raw materials to help you choose the most suitable machine on best quality by economically.

BOGDA has different production factory and strong technical departments to study each customer's requirements until meeting final order. Serious sales and after-sale department to reply inquiry and solve problems for custom in 24 hours, which already exported machine and materials to Russia, Venezuela, Kazakhstan, Turkey, Brazil, Dubai, Philippine, Malaysia, Thailand, Vietnam, Poland, India and so on.

Fast response, good quality, best price and perfect service are our advantages and culture.

FAQ

1. How many electric, water, air need for the machines?
BOGDA: technical department supply the whole layout for workshop details.

2. Can I operate machine if don’t have experienced engineers?
BOGDA: (1) short-time engineers to customer company (5-15days)
(2) Year-time working as requirements

3. Any quality checking before shipment?
BOGDA: 100% confirm, run and test machines before shipment with quality certificate.

4. How long is the guarantee?
BOGDA: 12 months since the first day customer operates (except wear parts)

5. How can u help us when face some technical problem?
BOGDA: 24 hours by e-mail, message, calling. If problems happens need engineer we will arrange the closest or agent in local country, or send Chinese Engineers to solve in 2 weeks.

6. Where can we get spare part?
BOGDA: we choose International Brand that customer can find it in everywhere, such as Siemens, Schneider, Omron, Delixi etc, or send parts by DHL, Fedex, TNT and other express.
