Характеристики

Application: Sheet, Profile, Plates

Plastic Processed: PE, PP, ABS, HDPE, ABS/PP, HDPE/PP, PE/PP, Lldpe, LDPE

Condition: New

Screw Design: Single-screw

Screw Material: 38CrMoAlA

Screw diameter (mm): 120 mm

Screw L/D Ratio: 33:1

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Alge

Voltage: 3phase 380v 50hz

Dimension(L*W*H): Customized

Power (kW): 132

Weight: Customized

Warranty: 2 years

Key Selling Points: High-accuracy

Applicable Industries: Building Material Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail

After-sales Service Provided: Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support

After Warranty Service: Video technical support, Online support, Spare parts, Field maintenance and repair service

Local ServiceÂ Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea

Output (kg/h): 100 - 550

Сертификация: CE SGS TUV ISO

Keywords: Plastic PE sheet making machine extrusion line manufacturer

Raw material: PE

Usage: Make Sheet

Processing Type: Exturding Machine

Machine type: Complete Line

Control: PLC+Touch Screen

Speed: 20-90r/min

Surface treatment: Nitrided and polished

Speed adjuster: EUROTHERM DC Adjuster

Product name: Plastic PE sheet making machine extrusion line manufacturer

Основная информация

Сертификация: CE SGS TUV ISO

Оплата и доставка Условия

Packaging Details: Plastic PE sheet making machine extrusion line manufacturer Normal wooden case package

Supply Ability: 1000 Set/Sets per Year Plastic PE sheet making machine extrusion line manufacturer

Характер продукции

MACHINE DESCRIPTION

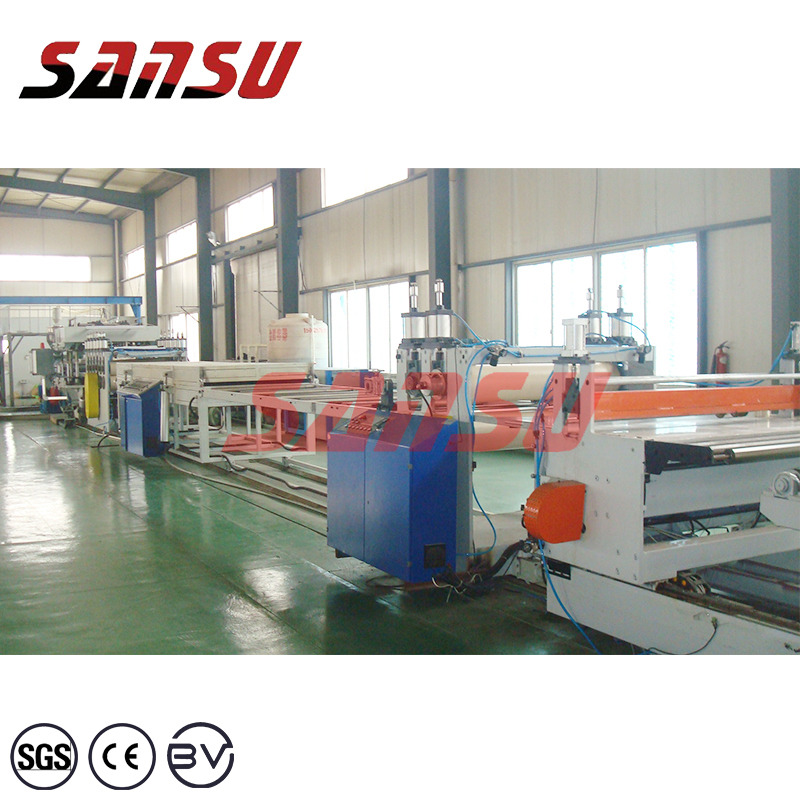

Plastic PE sheet extrusion machine.

In the plastic extrusion molding equipment, the plastic extruder is usually called the main machine, and the supporting equipment plastic extrusion molding machine is called the auxiliary machine. After more than 100 years of development, the plastic extruder has been derived from the original single screw, such as twin screw, multi-screw, and even no screw. Plastic extruder (main machine) can be used with various plastic molding auxiliary machines such as pipes, films, holding materials, monofilaments, flat filaments, packing belts, extrusion nets, plates (sheets), profiles, granulation, cable coating Match and form various plastic extrusion molding production lines to produce various plastic products. Therefore, plastic extrusion molding machinery is one of the widely used machines in the plastic processing industry, now and in the future.

FINAL PRODUCTS

PRODUCT DETAILS

The extrusion system includes a screw, a barrel, a hopper, a head, and a die. The plastic is plasticized into a uniform melt through the extrusion system, and is continuously extruded by the screw under the pressure established in the process.

⑴Screw: It is the most important part of the extruder. It is directly related to the application range and productivity of the extruder. It is made of high strength and corrosion resistant alloy steel. ⑵Machine barrel: It is a metal cylinder, generally made of alloy steel or composite steel pipe lined with alloy steel that is heat-resistant, high compressive strength, strong, wear-resistant and corrosion-resistant. The barrel cooperates with the screw to achieve the crushing, softening, melting, plasticizing, venting and compacting of the plastic, and continuously and uniformly conveys the rubber to the molding system. Generally, the length of the barrel is 15 to 30 times its diameter. The principle is to make the plastic fully heated and fully plasticized. Plastic extruder Plastic extruder (4 photos) (3) Hopper: The bottom of the hopper is equipped with a cutting device to adjust and cut off the material flow. The side of the hopper is equipped with a sight hole and a calibration metering device. ⑷Machine head and mold: The head is composed of alloy steel inner sleeve and carbon steel outer cover. The head is equipped with a forming mold. The function of the head is to transform the plastic melt that rotates into parallel and linear motion, and evenly and smoothly introduce the mold Sleeve and give the plastic the necessary forming pressure.

1. Single screw extruder.

Model SJ120/33
Max Output 350kg/h
Diameter 120mm
Motor power 132kw SIMO DC motor
Speed adjuster EUROTHERM DC Adjuster
Material 38CrMoAlA
Surface treatment Nitrided and polished
Rotation speed 20~90r/min
Material 38CrMoAlA

2. Double station screen changer

Material of filter plate 38CrMoAl
Diameter of filter plate 150mm
Change type Hydraulic cylinder
Hydraulic station power 2.2KW

3. T-die

Width of mould chasm 800mm
Max. hatch of mould:
producing sheeting with thickness 10mm

Min. hatch of mould:
producing sheeting with thickness2mm

4. Three rolle

Feeding type With feeding roller
Max. speed 15m/min
Height of center 1000mm
Driving system
Power of driving: Up roller: 1.5KW Mid roller:1.5KW Down roller:1.5KW

5. Haul off cooling shelf with side cutter

The cutting motor of trimming edge 750W
The width of cooling stacker 800mm
Length of stacker 6m

6. Water Roller temperature controller
Quantity of controller 3 sets
Heating power 9KW
Heating type Heating oil
Oil pump 0.75KW *3
Oil cooling water

9. Winder

Max diameter of roller 450mm
The max. width of sheet 800mm
Power of rotating motor 1.5kw

MACHINE PARAMENTERS

Model	Max Output	Diameter	Motor power	Speed adjuster	Material	Surface treatment	Rotation speed
SJ120/33	400kg/h	120mm	132kw SIMO DC motor	EUROTHERM DC Adjuster	38CrMoAlA	Nitrided and polished	20~90r/min
SJ90/33	200kg/h	90mm	75kw SIMO AC motor	ABB inverter	38CrMoAlA	Nitrided and polished	20~90r/min

RELATED PRODUCTS

PET sheet line

PP / PC hollow sheet line

PC / PMMA sheet line

PP / PE / ABS / PS Sheet line

PVC sheet line

All Products

ABOUT SANSU

Sansu Machinery.

Sansu is manufacturer for kinds of plastic sheet extrusion machines, such as PET/PC sheet extrusion line, PE/PP/ABS sheet extrusion line, PP/PC hollow sheet line, PET infrared crystallized dryer,and established with excellent research and development team,Now we have 30000 sqm of factory and more than 60 employee,We have more than 10years production for kinds of plastic sheet extrusion line, such as PET PP PE ABS sheet machine. We always keep researching for new technology, and make complete process from recycling to sheet extrusion.

Our Advantages.

1. Experiences We have own R&D teams, engineers have more than 20 years experiences on plastic extrusion machine manufacturing, we are professional.
2. We use high quality materials for manufacture each machine.
3. Good and professional after-sales service not only include warranty period, for whole life of machine.

FAQ

Q:What is acceptable payment terms?
A:T/T or L/C at sight

Q:Are you the manufacturer or trading company?
A:We are an industrial manufacture factory.we have independent technical team who focus on making machine; all the products are made by our technical team .

Q:How do you make the quotation for client?
A:Please offer the following information, so we can give you price and our advice as manufacturer:
Type of pipe you want to produce. Pipe diameter. Raw material and its types

If you can also send us photos of your samples, it would be highly appreciated.
